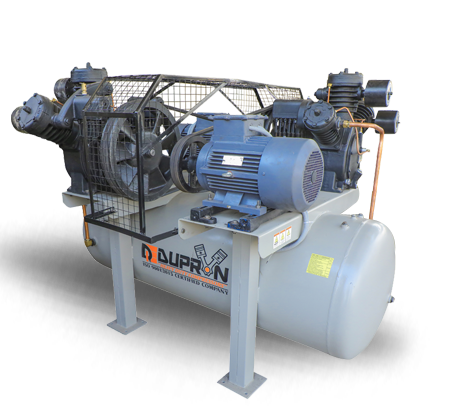

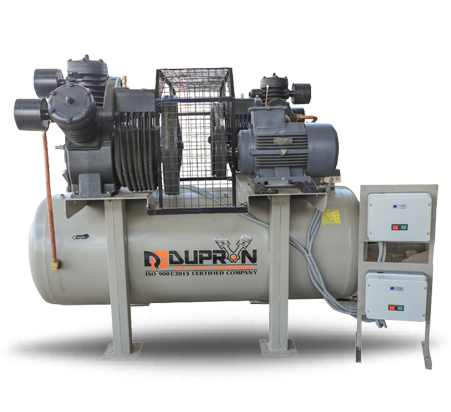

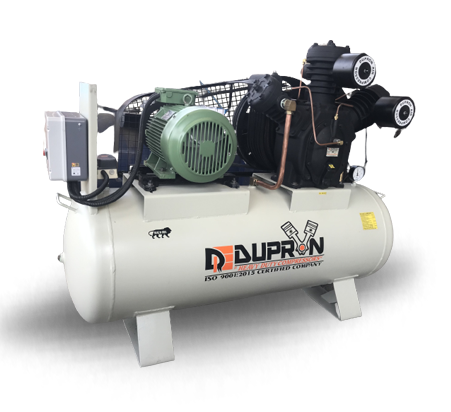

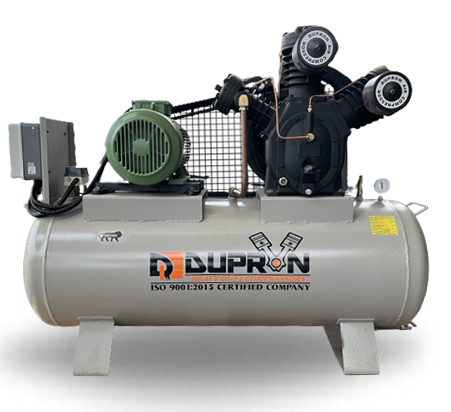

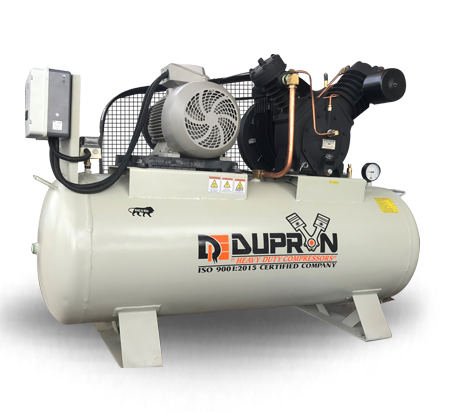

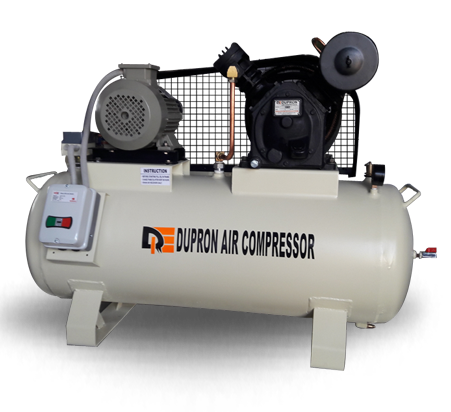

Dupron Company is manufactures, supplies and experts in Reciprocating Midium pressure breathing air compressors and services in india. Reciprocating Midium Pressure Air Compressor pressure Midium air into a storage space tank, increasing the pressure. When tank force reaches its upper limit the air compressor shuts off. The power contained in the compacted air can be applied for a range of applications.
| Model | Cylinders Size x Stroke |
Motor Hp | RPM | PD CFM |
FAD CFM |
Maximum psig |
Pressure kg/cm2 |
Air Receiver (ltrs.) |
|---|---|---|---|---|---|---|---|---|
| DP-734 | 3"&1.75"x2.75 | 2 | 660 | 7.42 | 5.63 | 175 | 12.3 | 100/150 |
| DP-734 | 3"&1.75"x2.75 | 3 | 866 | 9.74 | 6.93 | 175 | 12.3 | 150/200 |
| DP-742 | 4"& 2.5"x2.75" | 5 | 866 | 17.30 | 13.02 | 175 | 12.3 | 200/250 |
| DP-753 | 5"& 3"x3.5" | 7.5 | 660 | 26.40 | 20.30 | 175 | 12.3 | 250/300 |
| DP-771T2 | 5.5"& 3"x4" | 10/12/.5/15 | 660/800/1000 | 40/49/55 | 31/38/42 | 175 | 12.3 | 300/500 |
| DP-715T | 5"&5"&3.5x4" | 15 | 750 | 68.20 | 49.83 | 175 | 12.3 | 500 |
| DP-715T | 5"&5"&3.5x4" | 20 | 900 | 81 | 61 | 175 | 12.3 | 500 |
| DP-725T | 5.5"&5.5"x4"x4" | 25 | 950 | 110 | 80 | 175 | 12.3 | 500 |
| DP-725T | 5.5"&5.5"x4"x4" | 30 | 1100 | 121.03 | 93.20 | 175 | 12.3 | 500 |
| Model | Cylinders Size x Stroke |
Motor Hp | RPM | PD CFM |
FAD CFM |
Maximum psig |
Pressure kg/cm2 |
Air Receiver (ltrs.) |
|---|---|---|---|---|---|---|---|---|
| DP-7340 | 3"&1.75"x2.75 | 3 | 1000 | 11.25 | 8.65 | 175 | 12.3 | 150/200 |
| DP-7475 | 4"&2.5"x2.75 | 5 | 866 | 17.32 | 13.99 | 175 | 12.3 | 200/250 |
| DP-7475 | 4 & 2.5"x2.75" | 7.5 | 1100 | 22 | 17.80 | 175 | 12.3 | 200/250 |
| DP-7045 | 5"&2.75"x3.5" | 10 | 916 | 37.80 | 30 | 175 | 12.3 | 250/300 |
| DP-7600 | 5"&2.75"x3.5" | 10 | 916 | 37.80 | 30 | 175 | 12.3 | 250/300 |
| DP-7700 | 5.5"&3"x4 | 15 | 900 | 49.50 | 37 | 175 | 12.3 | 300/500 |
| DP-30T | 5.5"&5.5"x4"x4 | 25 | 1000 | 109 | 80 | 175 | 12.3 | 500 |
